Ground Beef Made Vacuum Freeze Dryer

1. The use of pre-freezing and drying as separate structures improves the efficiency and shortens the time of freeze-drying. 2. Double-sided radiation heating with a radiation rate of over 90% is achieved through the use of an aerospace grade aluminum alloy partition material, ensuring good temperature uniformity. 3. A high efficiency mixed refrigerant medium with a low freezing point and high boiling point and high heat transfer efficiency is used, ensuring long service life.

Send Inquiry

Features

1. By using pre-freezing and drying as separate structures, the efficiency of freeze-drying is improved and the time required for the process is reduced.
2. Double-sided radiation heating with a radiation rate of over 90% is achieved by using an aerospace-grade aluminum alloy partition material, which ensures good temperature uniformity.
3. A high-efficiency mixed refrigerant medium with a low freezing point and high boiling point and heat transfer efficiency is used, ensuring a long service life.

5 certificates

2 work shop

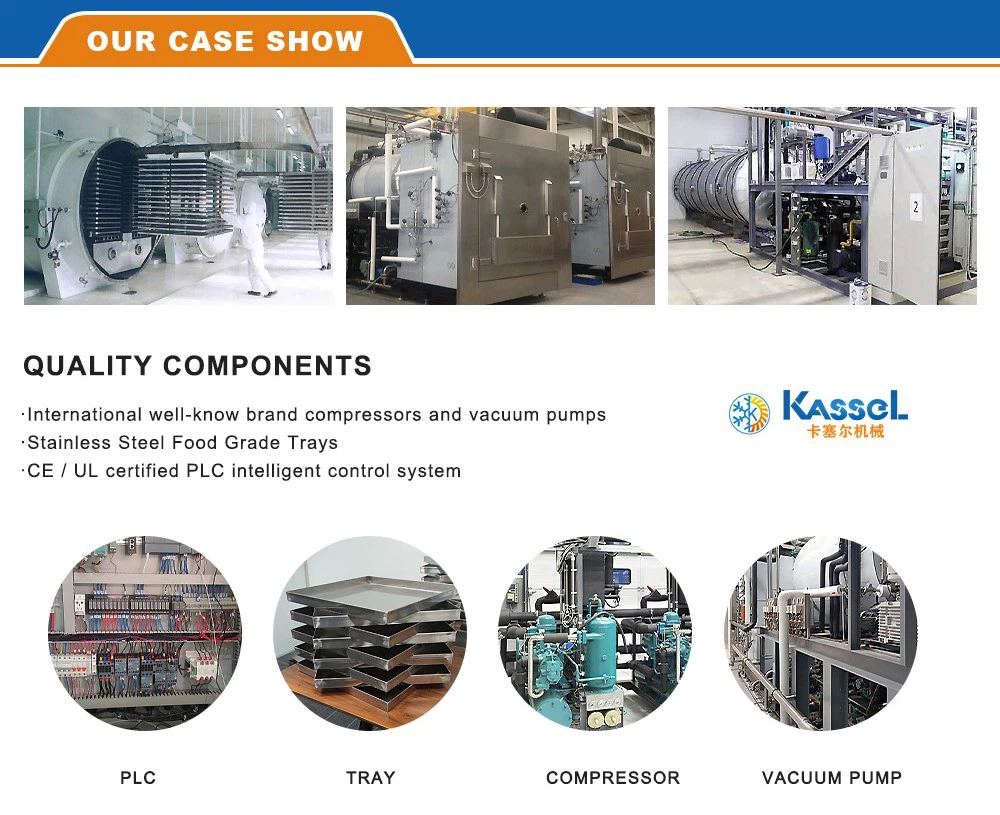

product-1000-815

6 service

7 FAQ

8 logistics

KFD-5㎡
Construction	Technical parameters	Remark
Base Structure
Effective area of shelves	5.0㎡
Input capacity	Approx: 50kg/batch
Maximum condenser frosting capacity	75Kg/batch
Power supply	380V, 50Hz, 3Phase, 5Wire	According to customer voltage
Power consumption	20Kw	Depends on specific configuration
Cooling Water	＞10.5T/Hr (T＜32℃, P=0.1-0.15MPa)	Recyclable
Machine size(LWH)	Approx: 270012002450mm	subject to the actual design
Main Structure	Unity type
Weight	Approx: 3200 Kg
Dry Chamber
Dry Chamber Material	S30408
Dry Chamber Shape and dimension	Cylinder φ1100*1100
Door lock	Hand knob lock	1pcs
Door Open direction	Right to left	Decided by customer
Open angle	＞110°
Door material	S30408
Surfaceness	Ra≤0.4um
Observation window	DN200
Door seal	O-shaped silicone rubber
Temperature sensor	PT100	Hot resistance A Level
Shelves
Shelf material	S30408
Shelf Surfaceness	Ra≤0.4um
Shelf quantity.(pcs)	7+1 layers	The top layer of the shelves is temperature compensation
Stainless steel tray	39544525/ 1.5mm thickness	28pcs
Distance between shelves	70 mm
Shelf dimension(LWH)	800×900×15mm
Shelf lowest temperature	-45℃
Shelf highest temperature	+80℃
Shelf Cooling Rate	+20~-40℃≤60min	No-load
Shelf fence	prevent the tray cross over the shelf
