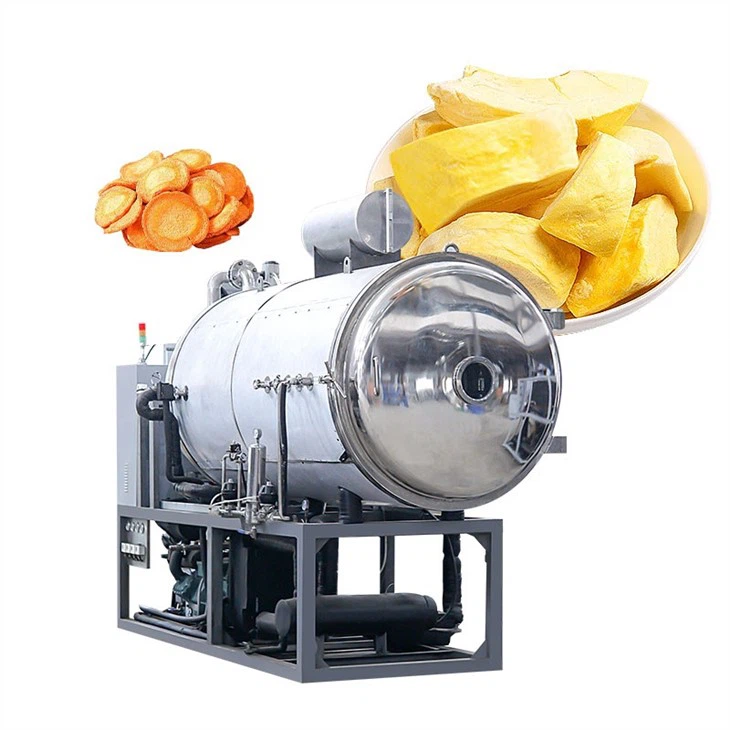

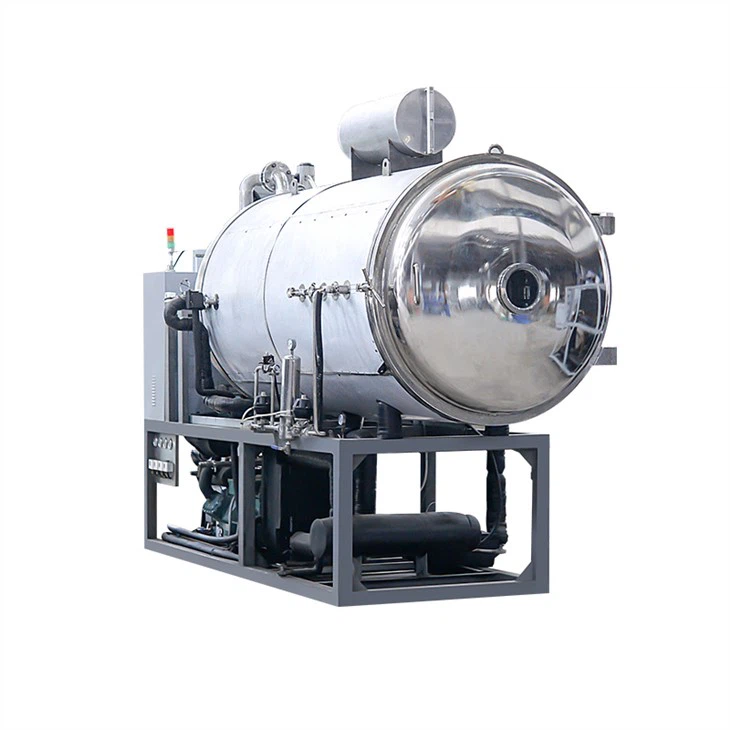

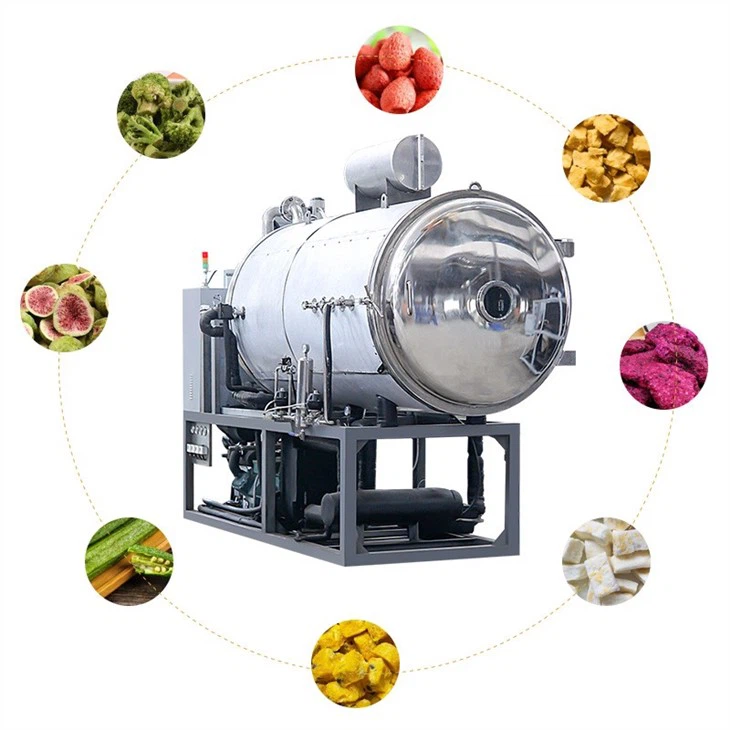

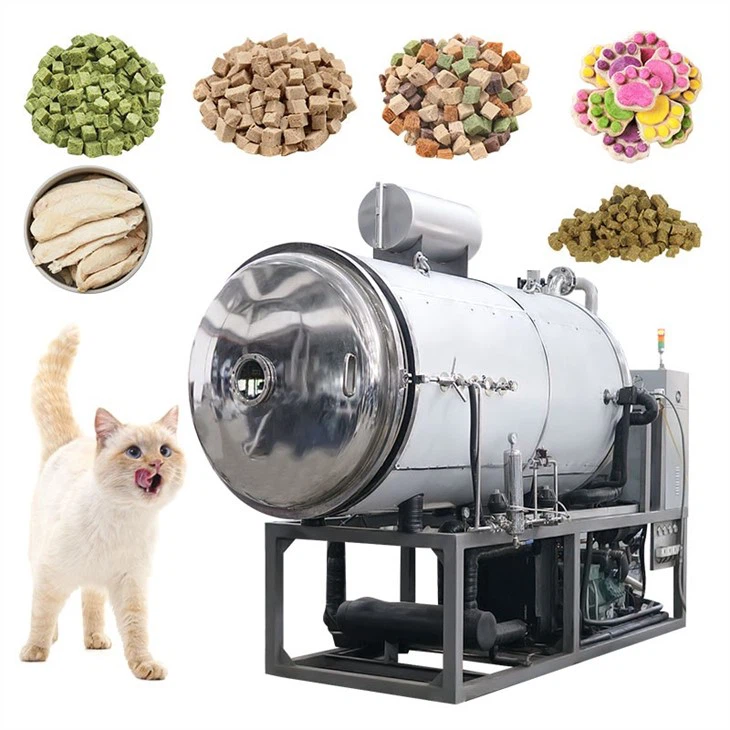

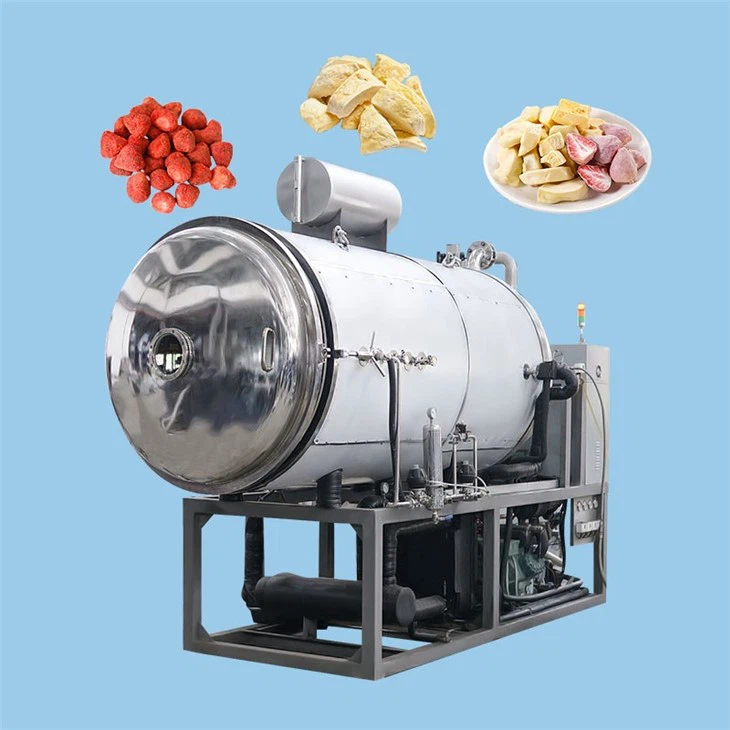

Industrial 75KG Plant Vacuum Freeze Dryer
1 Pre-freezing and drying are two separated structures, which is able to freezeand dry at the same time. This can improve the efficiency of freeze-dryingand shorten the time of freeze-drying. 2 Aerospace grade aluminum alloy partition material, double-sided radiationheating, radiation rate of more than 90%, good temperature uniformity. 3 High efficiency mixed refrigerant medium, low freezing point and high boilingpoint, high heat transfer efficiency, long service life. 4 The drying curve optimization control algorithm can control the heating rateand vacuum degree value of the products in the drying stage. 5 Patented gas diversion design and controltechnology, strong water captureability, high drying efficiency. 6 Flexible manual + automatic control mode, manual for exploring processautomatic for mass production. 7 Accurate sensor calibration function to ensure the accuracy of processparameters in long-term use. 8 Can set user leveland password, decentralized operation management. Accept customization, to meet customers' requirements.
Features
|
KFD-5㎡ |
||
|
Construction |
Technical parameters |
Remark |
|
Base Structure |
||
|
Effective area of shelves |
5.0㎡ |
|
|
Input capacity |
Approx: 50kg/batch |
|
|
Maximum condenser frosting capacity |
75Kg/batch |
|
|
Power supply |
380V, 50Hz, 3Phase, 5Wire |
According to customer voltage |
|
Power consumption |
20Kw |
Depends on specific configuration |
|
Cooling Water |
＞10.5T/Hr (T＜32℃, P=0.1-0.15MPa) |
Recyclable |
|
Machine size(L*W*H) |
Approx: 2700*1200*2450mm |
subject to the actual design |
|
Main Structure |
Unity type |
|
|
Weight |
Approx: 3200 Kg |
|
|
Dry Chamber |
||
|
Dry Chamber Material |
S30408 |
|
|
Dry Chamber Shape and dimension |
Cylinder φ1100*1100 |
|
|
Door lock |
Hand knob lock |
1pcs |
|
Door Open direction |
Right to left |
Decided by customer |
|
Open angle |
＞110° |
|
|
Door material |
S30408 |
|
|
Surfaceness |
Ra≤0.4um |
|
|
Observation window
|
DN200 |
|
|
Door seal |
O-shaped silicone rubber |
|
|
Temperature sensor |
PT100 |
Hot resistance A Level |
|
KFD-5㎡ |
||
|
Construction |
Technical parameters |
Remark |
|
Base Structure |
||
|
Effective area of shelves |
5.0㎡ |
|
|
Input capacity |
Approx: 50kg/batch |
|
|
Maximum condenser frosting capacity |
75Kg/batch |
|
|
Power supply |
380V, 50Hz, 3Phase, 5Wire |
According to customer voltage |
|
Power consumption |
20Kw |
Depends on specific configuration |
|
Cooling Water |
＞10.5T/Hr (T＜32℃, P=0.1-0.15MPa) |
Recyclable |
|
Machine size(L*W*H) |
Approx: 2700*1200*2450mm |
subject to the actual design |
|
Main Structure |
Unity type |
|
|
Weight |
Approx: 3200 Kg |
|
|
Dry Chamber |
||
|
Dry Chamber Material |
S30408 |
|
|
Dry Chamber Shape and dimension |
Cylinder φ1100*1100 |
|
|
Door lock |
Hand knob lock |
1pcs |
|
Door Open direction |
Right to left |
Decided by customer |
|
Open angle |
＞110° |
|
|
Door material |
S30408 |
|
|
Surfaceness |
Ra≤0.4um |
|
|
Observation window
|
DN200 |
|
|
Door seal |
O-shaped silicone rubber |
|
|
Temperature sensor |
PT100 |
Hot resistance A Level |
|
Shelves |
||
|
Shelf material |
S30408 |
|
|
Shelf Surfaceness |
Ra≤0.4um |
|
|
Shelf quantity.(pcs) |
7+1 layers |
The top layer of the shelves is temperature compensation |
|
Stainless steel tray |
395*445*25/ 1.5mm thickness |
28pcs |
|
Distance between shelves |
70 mm |
|
|
Shelf dimension(L*W*H) |
800×900×15mm |
|
|
Shelf lowest temperature |
-45℃ |
|
|
Shelf highest temperature |
+80℃ |
|
|
Shelf Cooling Rate |
+20~-40℃≤60min |
No-load |
|
Shelf fence |
prevent the tray cross over the shelf |
|
