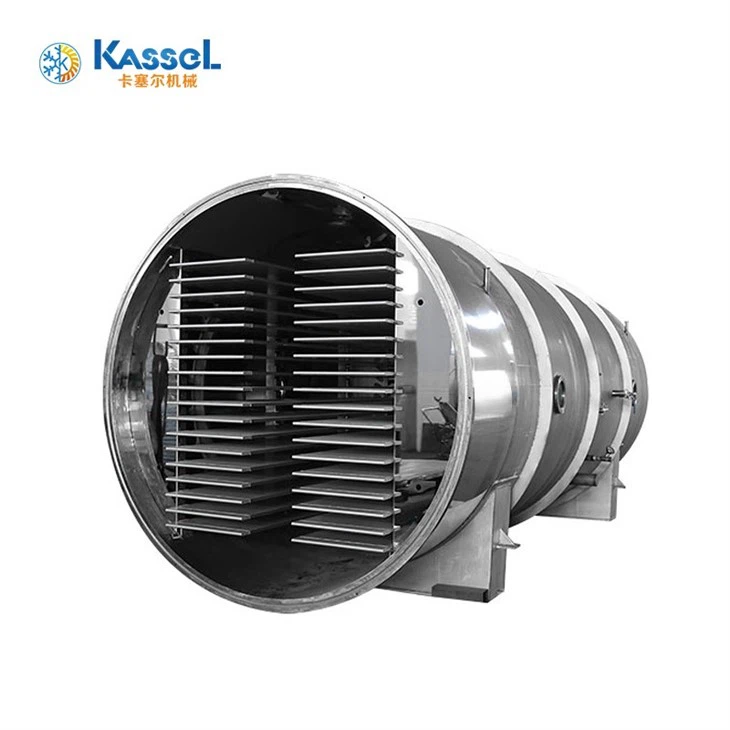

Custom Food Vacuum Freeze Dryer Supplier
Our company specializes in manufacturing the highest quality vacuum freeze dryers on the market. We offer a wide range of products that can be customized to meet the specific needs of our customers. Our vacuum freeze dryers are designed with the latest technology and materials, ensuring optimum efficiency and reliability.
Features
As a custom Food Vacuum Freeze Dryer supplier,we understand that every single customer has unique requirements for their vacuum freeze dryer, and we are committed to offering a tailored solution to meet these demands. Our experienced team of engineers is always available to offer support and guidance when selecting the right vacuum freeze dryer for your business.
Our vacuum freeze dryers are engineered with functionality, efficiency, and durability in mind. They are suitable for a wide range of applications such as food processing, pharmaceuticals, and chemicals. Additionally, they come in various sizes, from small laboratory models to large-scale commercial units.
We , Custom Food Vacuum Freeze Dryer supplier, pride ourselves on offering a personalized service that goes beyond just selling vacuum freeze dryers. We offer expert installation, maintenance, and repair services to ensure the continued performance and longevity of your equipment. Our commitment to providing first-class customer service is unrivaled in the industry.
We offer an extensive range of customizable vacuum freeze dryers designed with cutting-edge technology, suitable for use in various industries. We provide excellent customer service every step of the way, from selecting the right machine to maintenance and repairs.
|
KFD-5㎡ |
||
|
Construction |
Technical parameters |
Remark |
|
Base Structure |
||
|
Effective area of shelves |
5.0㎡ |
|
|
Input capacity |
Approx: 50kg/batch |
|
|
Maximum condenser frosting capacity |
75Kg/batch |
|
|
Power supply |
380V, 50Hz, 3Phase, 5Wire |
According to customer voltage |
|
Power consumption |
20Kw |
Depends on specific configuration |
|
Cooling Water |
＞10.5T/Hr (T＜32℃, P=0.1-0.15MPa) |
Recyclable |
|
Machine size(L*W*H) |
Approx: 2700*1200*2450mm |
subject to the actual design |
|
Main Structure |
Unity type |
|
|
Weight |
Approx: 3200 Kg |
|
|
Dry Chamber |
||
|
Dry Chamber Material |
S30408 |
|
|
Dry Chamber Shape and dimension |
Cylinder φ1100*1100 |
|
|
Door lock |
Hand knob lock |
1pcs |
|
Door Open direction |
Right to left |
Decided by customer |
|
Open angle |
＞110° |
|
|
Door material |
S30408 |
|
|
Surfaceness |
Ra≤0.4um |
|
|
Observation window
|
DN200 |
|
|
Door seal |
O-shaped silicone rubber |
|
|
Temperature sensor |
PT100 |
Hot resistance A Level |
|
Shelves |
||
|
Shelf material |
S30408 |
|
|
Shelf Surfaceness |
Ra≤0.4um |
|
|
Shelf quantity.(pcs) |
7+1 layers |
The top layer of the shelves is temperature compensation |
|
Stainless steel tray |
395*445*25/ 1.5mm thickness |
28pcs |
|
Distance between shelves |
70 mm |
|
|
Shelf dimension(L*W*H) |
800×900×15mm |
|
|
Shelf lowest temperature |
-45℃ |
|
|
Shelf highest temperature |
+80℃ |
|
|
Shelf Cooling Rate |
+20~-40℃≤60min |
No-load |
|
Shelf fence |
prevent the tray cross over the shelf |
|
