Instant Coffee Production Line
video
Instant Coffee Production Line

Instant Coffee Production Line

In summary, instant coffee is produced by extracting active ingredients from roasted ground coffee beans and then drying them. We provide all the equipment needed for the instant coffee production line such as pure water preparation system, CIP cleaning system, extraction device system, filtration and impurity removal system, concentration and refining system, and sterilization system. Improving the flavor and taste of coffee is the direction of our continuous efforts.

Features

Turnkey Instant Coffee Production Line & Processing Equipment

Kassel Machinery provides complete, industrial-grade instant coffee production lines engineered for maximum soluble yield, aroma retention, and low operating costs. From raw bean cleaning, roasting, and fine grinding to high-efficiency counter-current extraction, vacuum concentration, and advanced drying systems, our integrated production line meets stringent global food safety and sanitation standards.

Engineering Superiority & Process Innovation

  • Aroma Recovery Technology: Integrated aroma extraction and back-addition system prevents the loss of volatile coffee flavors during high-temperature processing.
  • High-Yield Multi-Column Extraction: Continuous high-pressure extraction battery achieves maximum soluble solids extraction while maintaining original roast profile notes.
  • Energy-Efficient Vacuum Evaporation: Low-temperature falling film concentration preserves heat-sensitive compounds and reduces steam consumption significantly.
  • Full Automation & CIP System: Centralized PLC/SCADA control panel with automated Clean-In-Place (CIP) technology ensures zero cross-contamination and continuous operation.

Technical Process Comparison: Spray Drying vs. Freeze Drying Line

Feature / Parameter Standard Spray-Dried Powder Line Premium Freeze-Dried Crystal Line
Drying Method High-Temperature Atomization Spray Drying Sub-Zero Vacuum Sublimation (Lyophilization)
Flavor & Aroma Retention Moderate (Requires Artificial Aroma Backing) Superior 98%+ Original Aroma Retention
Product Appearance Fine Powder / Agglomerated Granules Large Golden-Brown Freeze-Dried Crystals
Line Capacity Range 500 kg/day - 10 Tons/day 200 kg/day - 5 Tons/day (Customizable)
Sanitary Grade SUS304 / SUS316L Food-Grade Stainless Steel SUS304 / SUS316L Food-Grade Stainless Steel

Upgrade Your Line with Industrial Coffee Lyophilization Technology

As consumer demand shifts toward premium, specialty coffee, freeze-dried instant coffee has become the fastest-growing market segment. As industry-leading vacuum freeze dryer manufacturers, Kassel Machinery integrates proprietary freeze drying chambers, continuous freezing tunnels, and precise sublimation temperature controls directly into your instant coffee processing layout.

Partnering with us allows you to transition seamlessly from conventional spray drying to high-value freeze-dried crystal production, maximizing profit margins and brand value.

Planning a New Instant Coffee Factory or Production Line?

Consult with our engineering team for custom plant layout, extraction optimization, and complete equipment quotes.

Request Complete Line Quotation

The main components of the instant coffee production line:

1. Pretreatment refers to screening and cleaning of raw coffee beans, to remove foreign objects such as metals, stones, dust, etc., as well as broken beans and mold beans.

2. Roasting refers to the complex physical and chemical reactions of the substances contained in the coffee bean during roasting to form the unique aroma of coffee.

3. Grinding refers to the process of grinding the roasted coffee beans into particles of a certain size in order to improve the extraction efficiency

4. Extraction refers to extracting the active ingredients of coffee into water under a certain temperature and pressure.

5. Concentration refers to increasing the concentration of coffee (generally 40%) at a lower temperature (-50°C) by vacuum concentration, which is mainly for the convenience of drying operations.

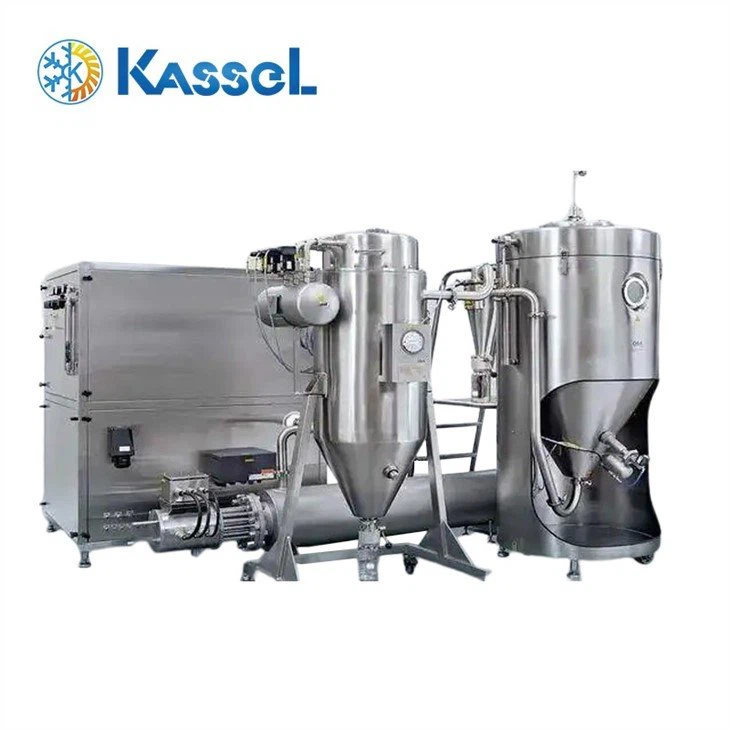

6. Drying, which is the process of forming instant coffee powder, is also the process that has the greatest impact on the quality of coffee powder in the whole processing process. At present, the spray drying method is generally used, Due to the strong heat sensitivity of coffee aroma substances, it is extremely volatile at higher drying temperatures (in fact, there has been a certain amount of volatilization in the previous extraction and concentration process). The application of vacuum freeze-drying technology can perfectly solve this problem.



In summary, instant coffee is produced by extracting active ingredients from roasted ground coffee beans and then drying them. We provide all the equipment needed for the instant coffee production line such as pure water preparation system, CIP cleaning system, extraction device system, filtration and impurity removal system, concentration and refining system, and sterilization system. Improving the flavor and taste of coffee is the direction of our continuous efforts.
