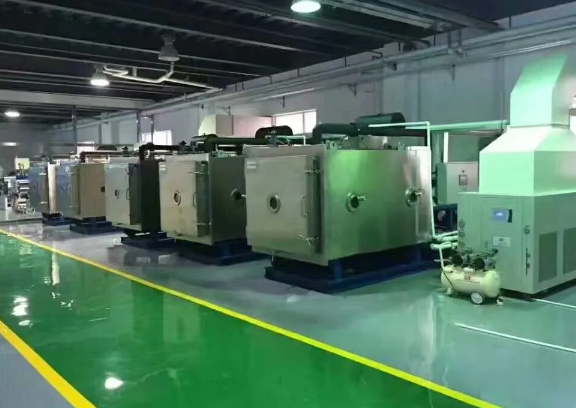

KFD Series Laboratory Vacuum Freeze Dryer
Experimental and production vacuum freeze dryer is an efficient drying technology, which is widely used in pharmaceutical, chemical, food and other industries. The experimental type is suitable for drying, concentration and extraction of small samples in the laboratory, and the production type is suitable for mass production and drying, sealing and preservation, long-term storage, etc.
Features
Vacuum freeze drying technology is an efficient drying process that obtains dried samples by freezing and drying samples at low temperatures and vacuum. Experimental and production vacuum freeze dryers are two common equipment, with the following characteristics:
Experimental vacuum freeze dryer
It is suitable for small sample drying, concentration, extraction and other experimental processes in the laboratory.
The equipment is small in size, compact in structure, easy to handle and use.
Multiple batches can be dried at the same time to improve drying efficiency.
Easy to operate, graphical control interface for easy experimental operation.
|
KFD-1㎡ |
||
|
Construction |
Technical parameters |
Remark |
|
Base Structure |
||
|
Effective area of shelves |
1.0㎡ |
|
|
Input capacity |
Approx:10kg |
|
|
Maximum Condenser capacity |
15Kg/batch |
|
|
Power supply |
380V/50Hz/3P |
According to customer voltage |
|
Power consumption |
Approx: 9.2Kw |
Depends on specific configuration |
|
Cooling Water |
＞3T/Hr (T＜32℃, P=0.1-0.15MPa) |
Recyclable |
|
Machine size(L*W*H) |
Approx:2500*950*1800mm |
subject to the actual design |
|
Main Structure |
Unity type |
|
|
Weight |
Approx:1200 Kg |
|
|
Dry Chamber |
||
|
Dry Chamber Material |
S30408/ 6mm thickness |
|
|
Dry Chamber Shape and dimension |
Cylinder φ600*650 |
|
|
Door lock |
Hand knob lock |
|
|
Door Open direction |
Right to left |
Decided by customer |
|
Open angle |
＞110° |
|
|
Door material |
S30408 |
|
|
Surfaceness |
Ra≤0.5um |
|
|
Observation window
|
DN200 |
Installed on the door |
|
Door seal |
Medical o section silicone rubber seal |
|
|
Temperature sensor |
PT100 |
3pcs |
|
Shelves |
||
|
Shelf material |
S30408 |
|
|
Shelf Surfaceness |
Ra≤0.5um |
|
|
Shelf quantity.(pcs) |
5+1 layers |
The top layer of the shelves is temperature compensation |
|
Stainless steel tray |
395*245*25/ 1.5mm thickness |
10pcs |
|
Distance between shelves |
60 mm |
|
|
Shelf dimension(L*W*H) |
500*400*15mm |
|
|
Shelf lowest temperature |
-45℃ |
|
|
Shelf highest temperature |
+80℃ |
|
|
Shelf Cooling Rate |
+20~-40℃≤60min |
No-load |
|
Shelf fence |
prevent the tray cross over the shelf |
|
|
Condenser |
||
|
Condenser Material |
S30408/ 6mm thick |
|
|
Shape and dimension |
cylinder φ550*625 |
at back of dry chamber |
|
Coil pipe material |
S30408 |
|
|
Coil shape |
Circular coil pipe |
|
|
Refrigerant |
R404a |
|
|
Condenser lowest temperature |
-65℃ |
|
|
Cooling rate |
+30~-40℃≤30min |
|
|
defrosting method |
Hot gas |
|
|
Temperature sensor |
PT100 |
|
|
Refrigerating Unit |
||
|
Compressor. |
TAG2522Z Tecumseh |
1set |
|
Power consumption |
4.6 Kw |
|
|
Refrigerant |
R404a |
|
|
Shelf temperature uniformity |
+/-1℃ |
|
|
Oil separator |
Emerson |
1set |
|
Oil Filter |
Emerson |
1set |
|
Gas-liquid separator |
Emerson |
1set |
|
Pressure protection relay |
Danfoss |
1set |
|
Water cooled condenser |
Hjrondo |
1set |
|
Refrigerating solenoid valve |
Danfoss |
1set |
|
Expansion valve |
Danfoss |
1set |
|
Vacuum System |
||
|
Vacuum Pump |
BSV30 1.1KW |
1sets |
|
Corrugated pipe |
KF40 |
Vacuum Pipe Shock Resistance |
|
Butterfly valve |
DN100 |
Connect the chamber and condenser |
|
Vacuum solenoid baffle valve |
JYC-JQ40 |
Automatic open or close with vacuum pump |
|
vacuum gauge |
TTR91 |
Leybold |
|
Final vacuum |
≤1Pa |
No-load |
|
Pumping rate |
From the atmospheric pressure dropped to 10 Pa≤45min |
|
|
System leakage rate |
5 Pa.L/sec |
|
|
Circulation System |
||
|
Pipe material |
S30408 |
|
|
Circulation pump |
GPD 32 Shinhoo |
1set |
|
Circulating fluid |
Silicon oil 2cst@25℃ |
|
|
Heat exchanger |
50-32 sanhua |
1set |
|
Heating rate |
＞1℃/min |
|
|
Heating method
|
Electric Heating 3KW |
|
|
Control method |
PID control |
|
|
Control system |
||
|
System Monitoring Software |
KASSEL |
1set |
|
Vertical control cabinet |
1100×400×600 |
Control, record |
|
PLC |
SIEMENS CPU 226 CN AC/DC/relay |
1set |
|
Thermocouple extension module |
SIEMENS EM 231 CN 4(4 TC) |
1set |
|
Analog input module |
SIEMENS EM 231 CN(4 AI) |
1set |
|
HMI |
SIEMENS SMART1000 |
1set |
|
Cable of HMI and PLC |
KASSEL |
|
|
Constant current |
KASSEL |
1 |
|
Switching Power Supply |
Taiwan MW companies / 24V/5V |
24V 1pc 5V 1pc |
|
Temperature sensor |
T-type thermocouple |
Temperature sensor |
|
vacuum gauge |
ULVAC |
2 |
|
AC contactor |
SCHNEIDER |
|
|
Air-break |
SCHNEIDER |
|
|
Electric wire |
10㎡, 6㎡,4㎡,2㎡,1㎡ |
|
