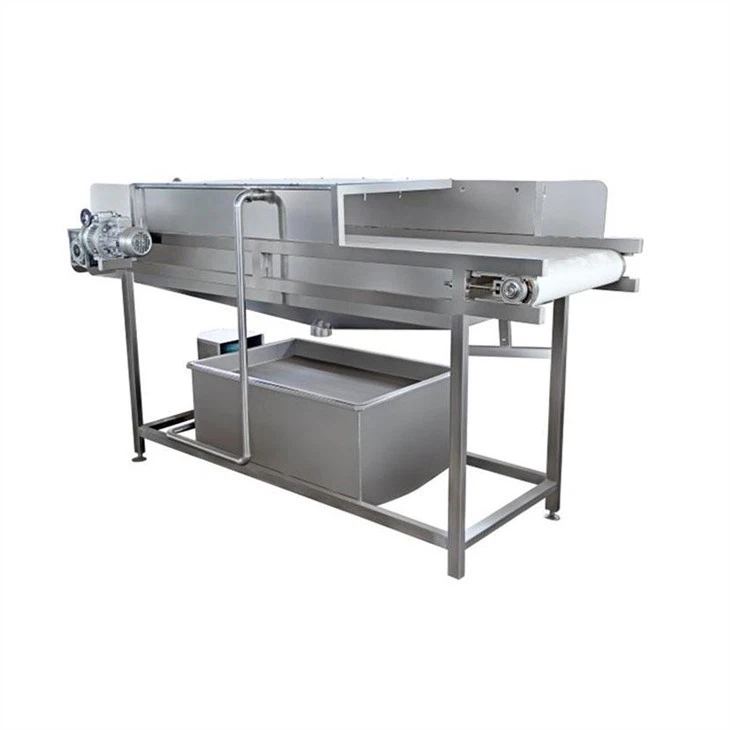

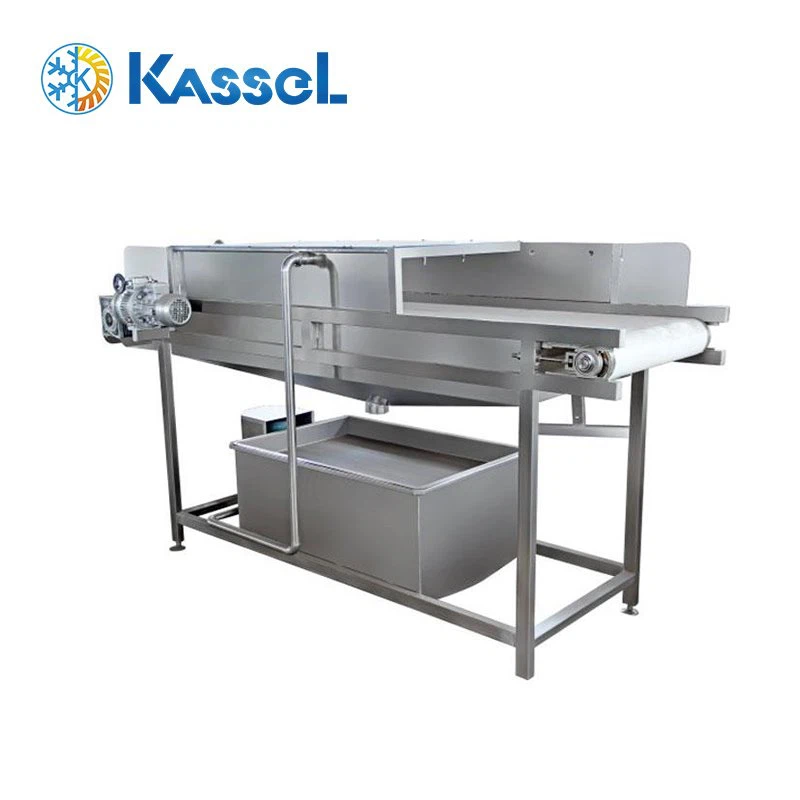

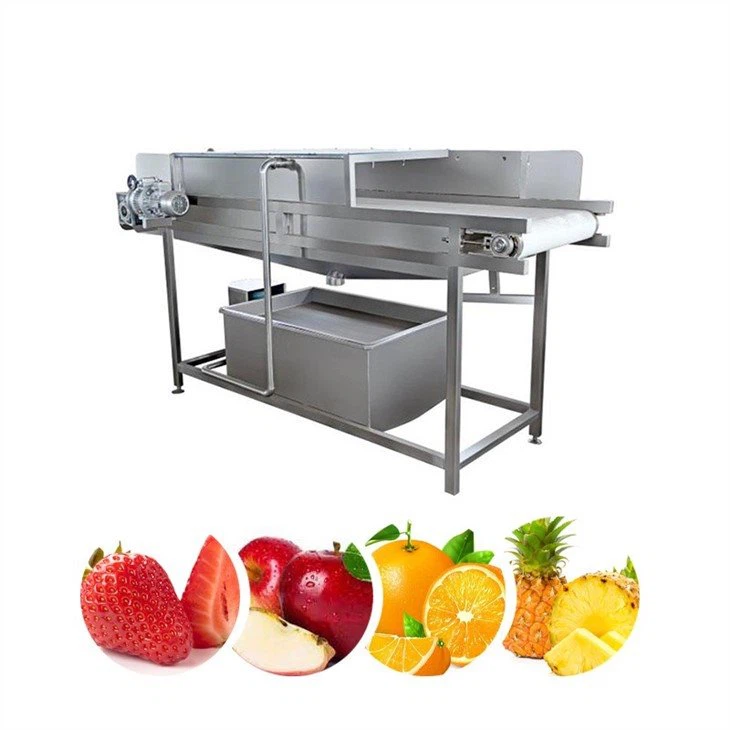

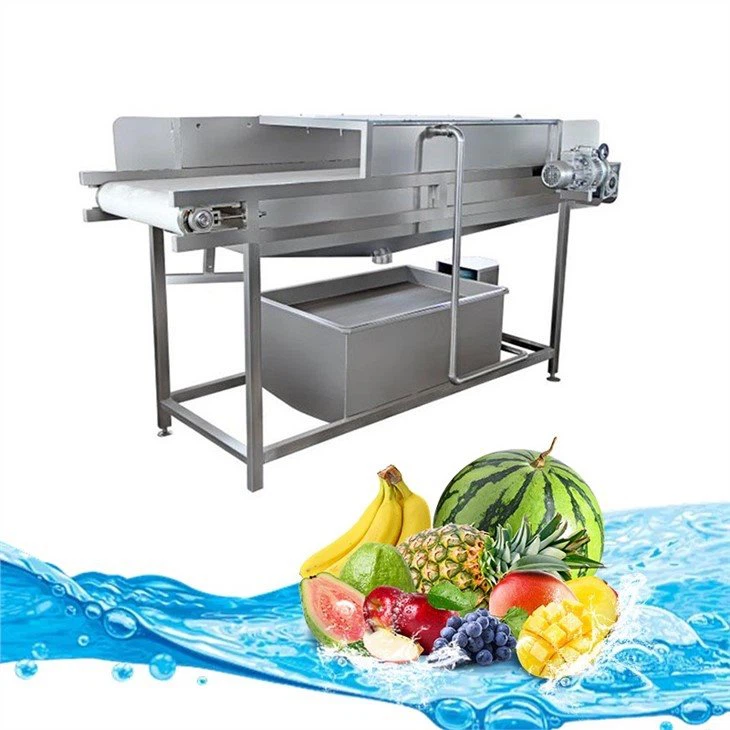

Industrial Fruit Cleaning Machine

The industrial fruit cleaning machine can use an automated production line to deep clean the fruit without moving or disassembling the device. The machine imitates the principle of manual hand rubbing and surfs and rolls to clean the fruit, so that the cleaning has no dead ends and much cleaner.

Working principle of industrial fruit cleaning machine:

Among them, the drum type washing machine is a relatively practical food preliminary processing machine, which has the advantages of simple structure, low energy consumption, reliable operation, low manufacturing cost and water saving. Suitable for cleaning citrus, oranges, apples and other hard materials. By the rotation of the circular drum, the fruit is continuously turned over in it, and at the same time, the high-pressure water is sprayed with a water pipe to wash the turned raw materials, so as to achieve the purpose of cleaning. Sewage and sediment are discharged through the bottom sump by the net of the drum.

It consists of a frame, a motor, a belt drive system, a reducer, a coupling, a sprocket drive system, a bearing, a spiral drum, a flushing water pipe, a baffle, and a discharge mechanism. The motor and the reducer are fixed on the frame. The motor is connected with the reducer through the belt drive system. The reducer is connected with the small sprocket through the coupling. The large sprocket drives the friction wheel on the drum to make the drum rotate. There is a spiral inside the drum. The guide plate, while rotating, drives the fruit to discharge. In order to meet the needs of large-capacity cleaning, the cleaning machine can add a spray cleaning function during the material conveying process, so that the material can be sprayed after cleaning in the steam bath to improve the cleaning effect of the material.
