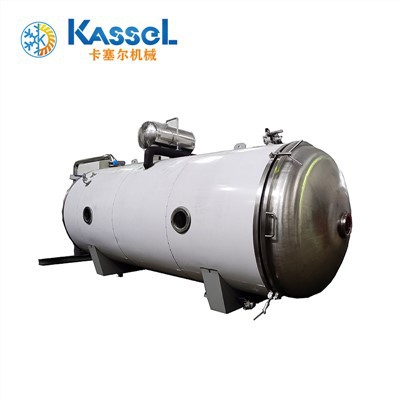

High Capacity Industrial Vacuum Same As Dehydrator

Item项 目

Parameters参 数

Model型号

KFD-200

Number数量

1pcs

Dimensions of chamber (length/width/height)干燥仓外形尺寸(长/宽/高)

12500×2646×2800 mm

Dimensions of condenser (length/width/height)捕冰舱外形尺寸(长/宽/高)

7220×2250×2500 mm

Diameter inside the chamber

干燥仓内径

2500mm

Diameter inside the chamber door

舱门内直径

2500mm

Chamber&Chamber door thickness

干燥舱体,舱门壁厚

8mm

Chamber&Condenser&Door material

材质

S30408

Chamber inner surface treatment

干燥舱内表面处理

Polish Ra＜0.5

抛光

Chamber outer surface treatment

干燥舱外表面处理

Brushed Ra＜0.5

拉丝

Condenser inner surface treatment

捕冰舱内表面处理

Polish Ra＜0.5

抛光

Condenser outer surface treatment

捕冰舱外表面处理

Install insulation

安装保温

Insulation form保温形式

Polyurethane insulation, steel plate outer protection

聚氨酯保温,钢板外护

Door opening and close

舱门开启,关闭形式

The suspension rail is translated and opened, and the door lock is manually rotated and pressed.悬挂轨道平移开启,手动旋转压紧

Total effective loading area

总有效装料面积

Approx: 205㎡

Material trolley quantity

单舱装载物料小车数量

7 pcs*1 set

7个*1套

Material trolley material物料小车材料

Main framework stainless steel

主框架不锈钢制成

form of transport

运输形式

Working on suspended stainless steel rails

行走在悬挂不锈钢轨道上

Number of trays

单舱托盘数量

476 pcs*1 set

476 只*1套

Track turning and connection form

轨道转弯,连接形式

Pneumatic control, automatic conversion

气动控制,自动转换

Dimensions of the tray (length × width × height)

托盘外形尺寸(长×宽×高)

710*610*35mm

Form of tray托盘形式

Stamped and formed with rounded corners

整体冲压成型,四周为圆角

Material of tray托盘材质

Aluminum alloy, surface anodized

铝合金,表面阳极氧化发白处理

Thickness of tray托盘壁厚

2mm

Per tray area 每只托盘面积

Approx: 0.43 ㎡

Per tray weight 每只托盘重量

2 kg

Weight of each material trolley (including pallet)

每辆物料小车重量(含托盘)

Approx: 80kg

Heating method加热方式

Steam heat source, heat medium energy carrier, radiation type

蒸汽热源,热媒载能,辐射式

Number of shelves

加热板数量

Total 36pcs

共 36 块

Dimensions of the shelf (length × width × height)

加热板尺寸(长×宽×厚)

600mm×10500mm×22mm

Material of shelf加热板材质

AL6063

Surface treatment form

加热板表面处理形式

Overall anodized treatment

整体阳极氧化发白处理

Working temperature

加热板工作温度

RT~80℃

常温～80℃

Maximum heating rate

加热板最大升温速率

30℃～120℃ ≤ 40min

Maximum cooling rate

加热板最大降温速率

60℃～30℃ ≤ 30min

Temperature control accuracy

加热板控温精度

±1℃

Condenser placement

冷阱放置位置

Side type

侧置式

Condenser structure type

冷阱结构形式

Tube type condenser

管式冷阱

Condenser coil material

冷管材质

S30408

Condenser coil specification

冷管规格

Φ32*2

Condenser shell material

冷阱壳体材质

S30408

Condenser shell inner diameter

冷阱壳体内直径

2100mm

Condenser shell thickness

冷阱壳体壁厚

8mm

Condenser coil surface treatment form

冷阱冷管处理形式

Polish

抛光

Condenser capture form

冷阱捕集形式

One-time capture

一次性捕集

Condenser deicing form

冷阱融霜形式

Hot water/low pressure steam

热水或低压蒸汽

Maximum ice capture of condenser

冷阱最大捕冰量

500kg/h(Experiment with pure ice

以纯冰为实验对象)

maximum ice capacity of condenser

冷阱最大容冰量

2500kg(Experiment with pure ice

以纯冰为实验对象)

Condenser working temperature

冷阱工作温度

-35℃～-45℃

Time of condenser deicing

冷阱融霜时间

＜45min

Ultimate vacuum

极限真空度

＜10Pa no-load state

空载状态

Chamber working vacuum

干燥舱内的工作真空度

30Pa~120Pa

Evacuation time from 1 atm to 133Pa

从 1 大气压到 133Pa 抽空时间

＜20~30min no-load state

空载状态

Standard feed capacity

标准进料能力

Approx 2000Kg/batch

Different moisture content of materials can be adjusted

约2000Kg/批次物料含水量不同可调整

General drying time

一般干燥时间

10～22H(与物料性质有关)

Related to material properties

Residual moisture content after drying干燥后的残余含水率

≤3%
